High temperature winding
High-temperature winding withstands increased loads.
The stator winding is carried out using a precision winding machine.
Maximum fill factor.
Arched magnets = maximum torque
Powerful N52H arch magnets increase torque and reduce losses.
Optimized air gap between magnets and stator.
Advantages
of our
production
Flexibility in order fulfillment – quick adaptation to customer needs and production requirements.
Customization option – development of individual solutions for specific tasks.
All elements are designed for heavy-duty use in harsh field conditions.

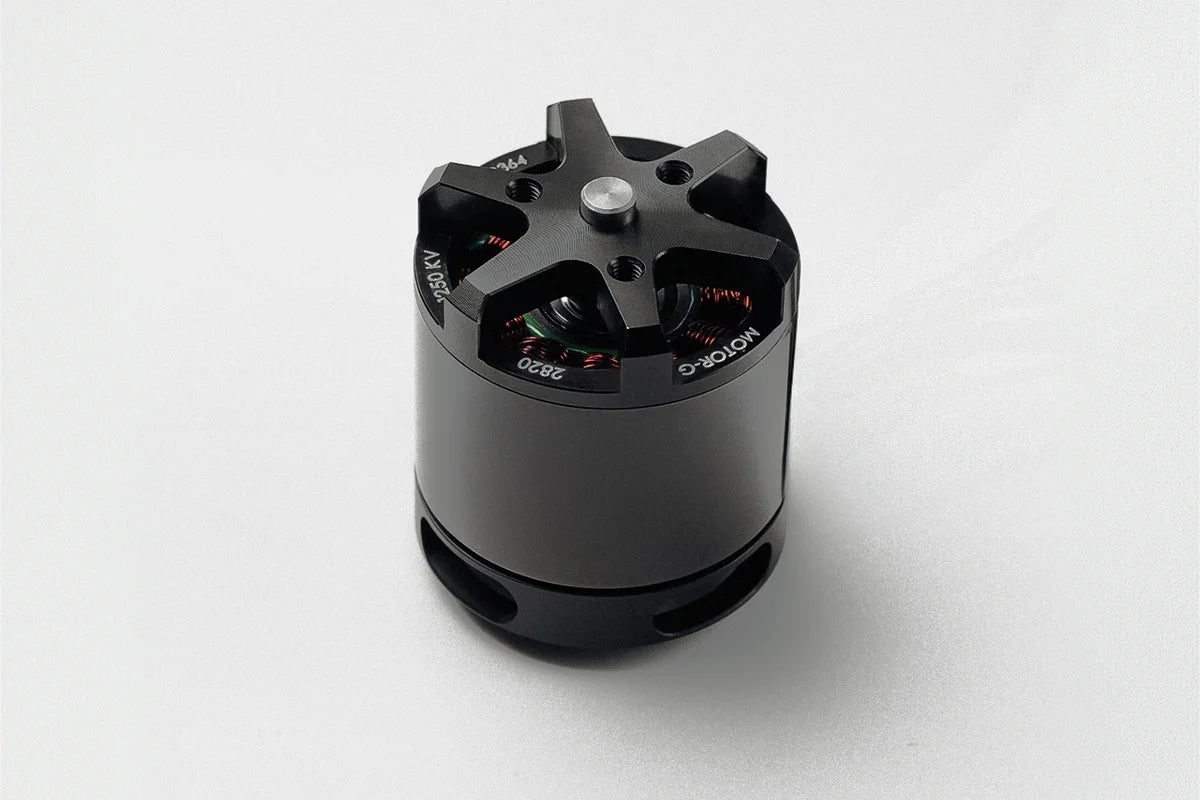

Motor 2820
| Propeller | 6S battery | 8S battery | 12S battery |
|---|---|---|---|
| APC 7x11x2 Weight of the drone: 1–3 kgSpeed: UP TO 160 km/h | 1300KV | 900kV | 650 kV |
| HQ 8x6x3 Weight of the drone: 2–4 kgSpeed: UP TO 160 km/h | 1250kV | 850kV | 600kV |
| HQ 10x5x3 Weight of the drone: 3–6 kgSpeed: UP TO 70 km/h | 900kV | 600kV | — |
UKRAINIAN ELECTRIC MOTORS ARE CREATED WITH A FOCUS ON QUALITY AND ENDURANCE , ENSURING RELIABILITY AND STABILITY OF CRITICAL EQUIPMENT
Proven production processes allow us to maintain a high level of quality.
Technical support
Consult an expert to
to address your needs
